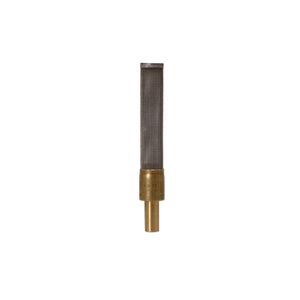

Fuel Tank SCREEN - slides on top of sediment bowl inlet

Item #: ABC1315-I
  • $8.95
Shipping calculated at checkout.


Specifications: .375" screen O.D., .216" pipe O.D., 2.530" o/a length Final Application: Fits: Most IH/Farmall models w/ stem style sediment bowl. Will fit IHS713, IHS1577, ABC092 sediment bowl assemblies Replacement Number: Notes: Slides on top of sediment bowl inlet to prevent dirt from the fuel tank bottom from entering the sediment bowl assembly. Direct fit for IHS713, IHS1577 & IHS3881. To fit ABC092 customer must drill sediment bowl stem out.
